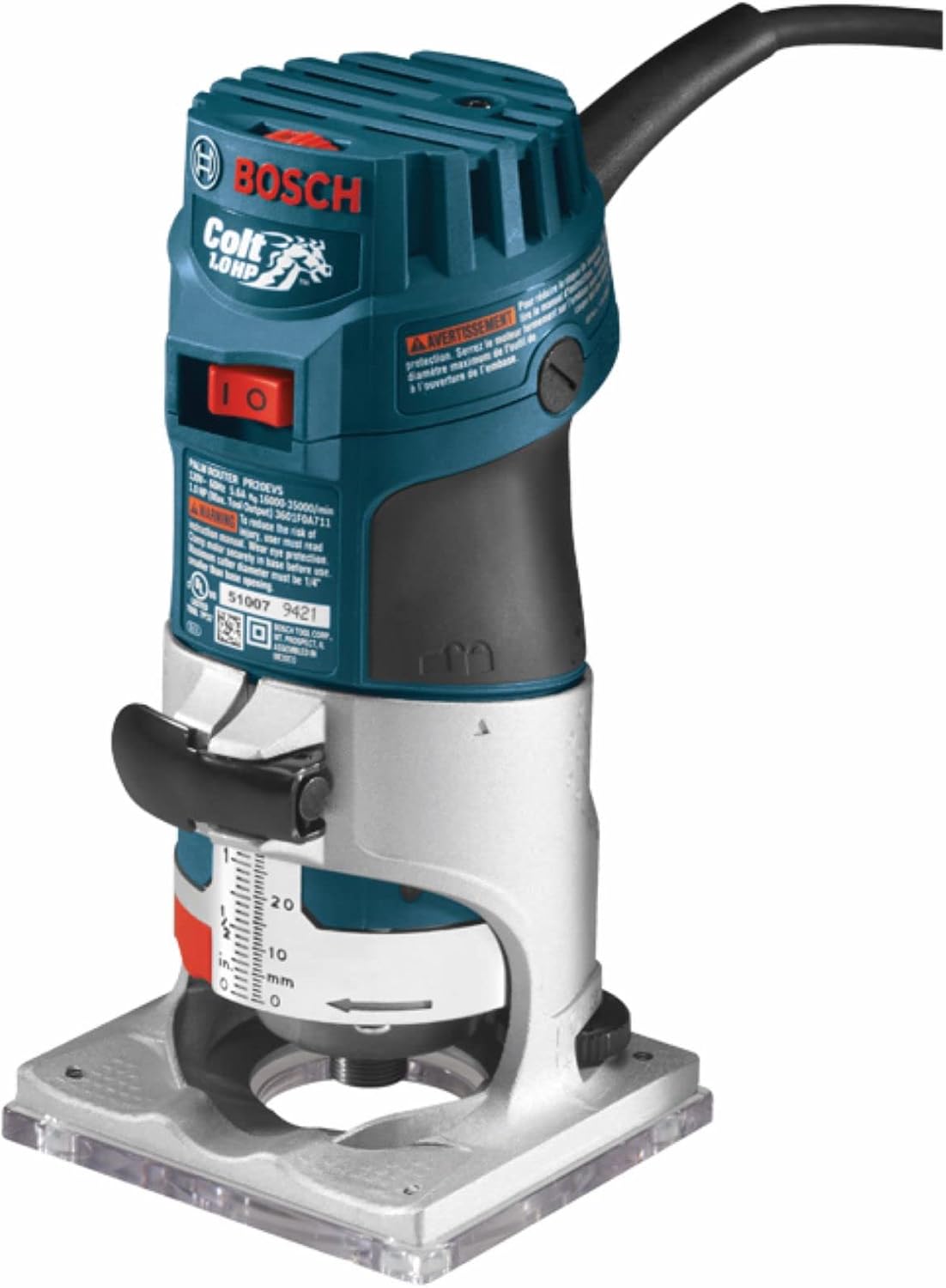

BOSCH PR20EVS Colt 1.0 HP Variable-Speed Palm Router – 5.6 Amp Motor, Soft Start, Constant Response Circuitry, Ergonomic Grip, Rugged Aluminum Base, Fixed, Quick-Clamp System, 1/4″ Collet

Description

BOSCH PR20EVS Colt 1.0 HP Variable-Speed Palm Router – 5.6 Amp Motor, Soft Start, Constant ResponsCircuitry, Ergonomic Grip, Rugged Aluminum Base, Fixed, Quick-Clamp System, 1/4″ Collet

Product Overview

You want a compact, reliable palm router that gives professional results without a big learning curve. The BOSCH PR20EVS Colt delivers power, precision, and control in a lightweight package you can use for trimming, edging, molding, inlay work, and countless other woodworking tasks. With a 1.0 horsepower (5.6 amp) variable-speed motor, soft-start feature, and Constant Response Circuitry, this tool keeps your cuts consistent even under load. Its ergonomic design and rugged aluminum fixed base make it comfortable to hold while staying rock-solid for accurate routing.

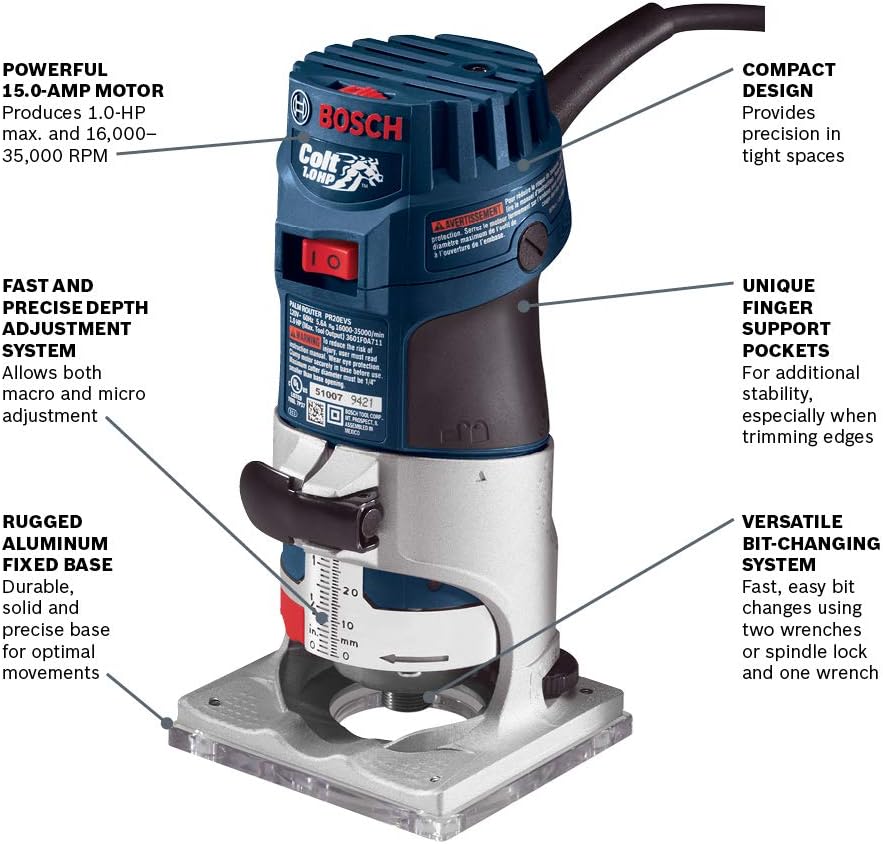

Key Features

• Variable-speed motor: 1.0 HP (5.6 Amp) with speed range from 16,000 to 35,000 RPM so you can match speed to material and bit size.
• Soft Start: Smooth ramp-up reduces kick and improves control when you begin a cut.
• Constant Response Circuitry: Maintains consistent speed and power under load for cleaner cuts and less burning.

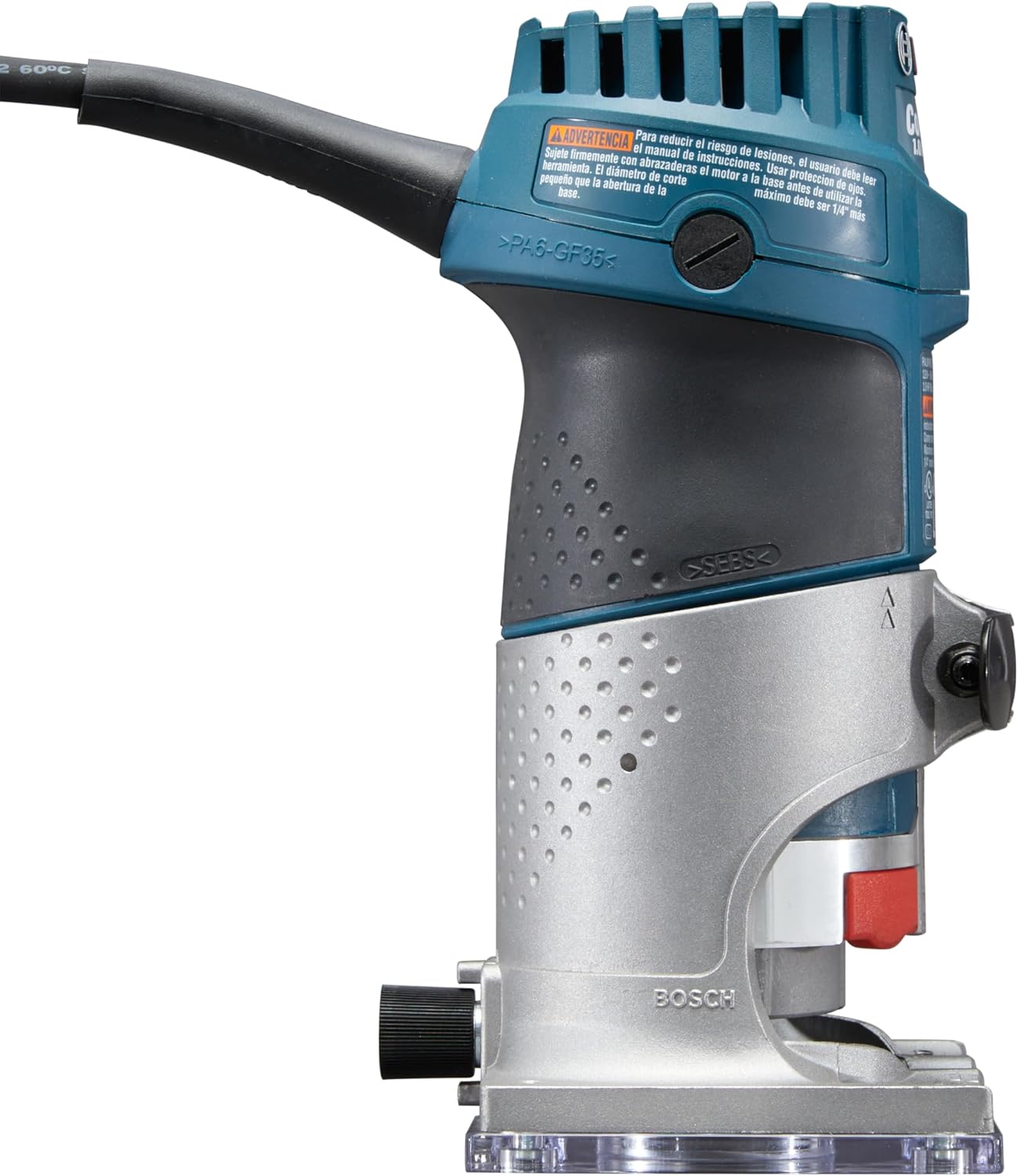

• Ergonomic grip with finger support pockets: Designed so you can hold the router securely and comfortably for extended periods.
• Rugged aluminum fixed base: Durable, stable, and precise to deliver consistent depth and bit alignment.
• Quick-clamp system: Fast motor-to-base adjustments and convenient swapping between fixed and plunge or other bases.
• Fast and precise depth adjustment: Macro and micro adjustments let you dial in depth exactly where you need it.
• Straight edge guide and angled cord exit: Guide leads the router up to 3-5/8″ from the edge; cord exit keeps the cord out of your work area.
• Enhanced bit capacity: Accepts bits up to 1-5/16″ in diameter and uses a 1/4″ collet for most standard bits.
• Versatile bit changing: Use two wrenches or the spindle lock plus one wrench for quick bit changes.

Benefits for Your Projects

• Increased control: The soft start and ergonomic grip reduce fatigue and help you keep a steady hand for smoother edges and consistent profiles.
• Better edge work: The straight edge guide and fixed base make it simple to follow templates, jigs, or workpiece edges so your trim and veneer work looks polished.
• Cleaner cuts on tough materials: Constant Response Circuitry keeps torque steady, preventing bogging and reducing scorch marks or tear-out.
• Faster setup, more work time: The quick-clamp system and intuitive depth adjustments let you move between tasks quickly, keeping momentum on the job.
• Long-term reliability: Rugged aluminum components and Bosch engineering mean you get a tool that performs reliably over many projects.

Product Specifications

Specification	Details
Model	BOSCH PR20EVS Colt
Motor Power	1.0 HP (5.6 Amp)
Speed Range	16,000 – 35,000 RPM (variable)
Collet Size	1/4″
Maximum Bit Diameter	Accepts bits up to 1-5/16″ (in fixed base)
Base Type	Rugged aluminum fixed base
Depth Adjustment	Macro and micro depth adjustments with quick-clamp system
Cord Exit	Angled cord exit for unobstructed work area
Special Features	Soft Start, Constant Response Circuitry, Ergonomic Grip, Finger Support Pockets, Straight Edge Guide
Weight	Compact and lightweight for palm router category
Bit Change Method	Two wrenches or spindle lock + one wrench

What’s Included

When you receive your BOSCH PR20EVS Colt, you can expect accessories that help you get started immediately:

• BOSCH PR20EVS Colt motor with fixed aluminum base
• Straight edge guide
• 1/4″ collet installed
• Wrenches for bit changes
• Instruction manual with set-up and safety information (Contents may vary by retailer; check the exact package before purchase.)

How You Will Use It

You can use this router for a broad range of woodworking tasks:

• Edge trimming and laminate trimming with the straight edge guide
• Flush trimming using guide bushings and templates
• Decorative edge profiling with small bits and precise depth settings
• Inlay work and hinge mortising when combined with jigs
• Rabbets and slot cutting when you set depth stops and use guide fences

Simple workflow:

1. Install the correct bit into the 1/4″ collet and tighten using the provided wrenches or spindle lock.
2. Set macro depth, then make fine micro adjustments to reach the exact cutting depth.
3. Attach straight edge guide when working from the edge; position and clamp as needed.
4. Set motor speed between 16,000 and 35,000 RPM depending on bit size and material hardness.
5. Turn on the router; the soft-start will ramp up speed. Guide the router smoothly along the workpiece, keeping steady pressure and using the finger support pockets for stability.

Tips for Best Results

• Match speed to bit diameter and material: use lower speeds for larger-diameter bits and harder materials to avoid burning or chipping.
• Make multiple shallow passes rather than one deep cut to reduce strain on the motor and bit and to improve finish quality.
• Use sharp, clean bits and check the collet regularly to ensure tightness for concentric cutting.
• Use a dust extraction or shop vacuum adapter where possible to keep the work area clear and improve visibility and bit life.
• Clamp work securely and use featherboards or guides for repeatable results on long or narrow pieces.

Maintenance and Care

• Clean the router after each use to prevent buildup of dust and resin in vents, collet, and around the base.
• Inspect the power cord and angled exit for any wear or damage and replace if necessary.
• Periodically check the collet and collet nut for wear; replace worn components to maintain bit grip and concentricity.
• Store in a dry location and protect from impacts to keep the fixed aluminum base accurate.
• Follow Bosch recommended service intervals if heavy or professional use is expected.

Who This Router Is For

This palm router is ideal if you:

• Are a hobbyist who wants a dependable compact router for cabinetry, trim, and small projects.
• Are a professional woodworker or contractor who needs a portable router for precise edge work and on-site trimming.
• Want a router that balances power and control for detailed joinery, inlay, and profile work.

Warranty and Support

Bosch typically offers a manufacturer’s warranty and customer support for their power tools. Check the warranty specifics for your region and keep your proof of purchase for any service claims. If you need help with setup, maintenance advice, or replacement parts, Bosch customer support and authorized service centers are available to assist.

Frequently Asked Questions

Q: Can I use this router with larger diameter bits?
A: The fixed base accepts bits up to 1-5/16″ in diameter. For larger profiles or different applications, check compatibility and safety recommendations before use.

Q: Is the router good for laminate trimming?
A: Yes — the straight edge guide and controlled power make it effective for laminate trimming and edge cleanup.

Q: What collet size is included?
A: A 1/4″ collet is included and is suitable for most common bits.

Q: How does Constant Response Circuitry help?
A: It keeps the motor speed steady when cutting under load, which improves finish quality and reduces the chance of burning or chipping.

Buy with Confidence

If you want a palm router that balances precision, portability, and professional features, the BOSCH PR20EVS Colt is engineered to meet those needs. It gives you the tools to produce clean edges, precise profiles, and repeatable results without unnecessary bulk. Add it to your toolkit and enjoy the control and performance that Bosch builds into every router.

Purchase now to add a compact, powerful, and reliable palm router to your workshop and raise the quality of your edge work and small routing tasks.

BOSCH PR20EVS Colt 1.0 HP Variable-Speed Palm Router – 5.6 Amp Motor, Soft Start, Constant ResponsCircuitry, Ergonomic Grip, Rugged Aluminum Base, Fixed, Quick-Clamp System, 1/4″ Collet

You want a compact, precise router that fits comfortably in your hand, handles delicate trim work and more substantial edge routing, and gives you reliable control from start to finish. The BOSCH PR20EVS Colt is built to be a go-to tool for woodworking, cabinetry, trim, and hobby projects. It combines a 1.0 HP motor, variable speed control, and a durable fixed aluminum base to deliver accuracy and dependability every time you route.

Why this router is right for you

You’ll appreciate the balance of power and control. The variable speed motor lets you match RPM to bit size and material so you get clean cuts without burning or tear-out. The soft-start motor reduces start-up torque for smoother operation, while Bosch’s Constant Response Circuitry maintains speed under load so your cuts stay consistent. The ergonomic grip and finger support pockets help you hold steady for trimming and edge work, and the angled cord exit keeps your workspace clear of tangles.

Key benefits at a glance

• Precise trimming and profiling with speeds from 16,000 to 35,000 RPM.
• Smooth startups and consistent cutting performance thanks to soft-start and Constant Response Circuitry.
• Ergonomic design keeps you comfortable during extended use and improves control for fine work.
• Rugged fixed aluminum base gives a stable platform for accurate routing.
• Quick-clamp system and easy depth adjustments let you change setups fast.

Product specifications

Specification	Details
Model	BOSCH PR20EVS Colt
Motor Power	1.0 Horse Power (HP)
Amperage	5.6 Amp
Speed Range	16,000 – 35,000 RPM (variable speed)
Collet Size	1/4″
Bit Capacity (Fixed Base)	Up to 1 5/16″ diameter
Base Type	Rugged fixed aluminum base
Depth Adjustment	Fast, precise macro and micro adjustments
Additional Features	Soft start; Constant Response Circuitry; Quick-clamp system; Angled cord exit; Finger support pockets; Straight edge guide
Edge Guide Reach	Up to 3-5/8″ from workpiece edge
Bit Changing	Two-wrench system or spindle lock + one wrench
Typical Uses	Trimming, edge profiling, inlay work, hinge mortising, cabinetry and furniture finishing

What you’ll be able to do

• Trim laminates and veneers with clean, consistent results.
• Create crisp edge profiles for decorative moulding and cabinetry.
• Cut shallow dados, rebates, and grooves for joinery and inlay work.
• Use a variety of router bits (up to 1 5/16″ in diameter in the fixed base) to expand your capabilities for shaping and detail work.
• Move the motor between compatible bases when you need plunge routing or template-guided operations, using the quick-clamp system for fast transitions.

Detailed features and how they help you

• Variable speed control (16,000–35,000 RPM): You can slow the router for large-diameter bits or delicate hardwoods and increase speed for small bits and softer materials. This flexibility reduces chip-out and improves surface finish.
• 1.0 HP, 5.6 Amp motor with soft start: The motor delivers enough power for common routing tasks while soft start reduces sudden torque, making starts less jerky and easier to control.
• Constant Response Circuitry: The electronics help maintain consistent RPM under load so cuts remain uniform even as pressure or bit size changes.
• Rugged aluminum fixed base: The solid base gives you a steady platform for precise depth control and clean edge work. It resists flex and holds alignment under pressure.
• Fast and precise depth adjustment: Macro and micro adjustments let you set coarse depth quickly and then dial in exact cutting depth for repeatable results.
• Quick-clamp system: You can move the motor between bases or remove it for compact storage. This system also makes changing setups faster on multi-step jobs.
• Finger support pockets and ergonomic grip: Improved contact points help steady your hands for controlled passes and reduce fatigue during long sessions.
• Angled cord exit: The cord doesn’t get in the way of your hand or your sightline, so you can work more comfortably with fewer distractions.
• Straight edge guide included: Guide along edges or set up for offset work up to 3-5/8″ from the edge of a workpiece for consistent, repeatable results.

Who should use this router

• Hobby woodworkers and DIYers who want dependable precision for cabinetry, trim, and furniture repairs.
• Professional finish carpenters who need a compact router for onsite edge trimming, hinge mortising, and small routing tasks.
• Makers and model builders who value control and versatility for detailed shaping and inlay work.
• Anyone who wants an easy-to-handle router for controlled, repeatable results when shaping edges or trimming sheet goods.

Typical applications

• Edge profiling and decorative moulding
• Trimming laminates and veneers
• Routing hinge pockets and shallow mortises
• Creating joinery details like rabbets and grooves
• Template routing for patterns and sign-making
• Small-scale shaping and finishing work on furniture components

What’s in the box

You’ll receive the PR20EVS Colt palm router configured for fixed-base use with the following items typically included:

• PR20EVS motor unit
• Fixed aluminum base
• 1/4″ collet
• Straight edge guide
• Wrench(es) for bit changes (two-wrench system or spindle lock compatibility)
• Operator’s manual and safety information

(Contents may vary slightly by retailer or kit version — check the package details when ordering.)

Maintenance and care tips

• Always unplug before changing bits or making adjustments.
• Keep the collet clean and free of dust or debris to ensure secure bit retention and consistent concentricity.
• Inspect the power cord and plug for damage before each use; replace if frayed or compromised.
• Use appropriate router bits for the material and speed range; oversized bits produce more vibration and require higher RPM and stability.
• Periodically clean vents and motor housing to prevent dust buildup and overheating.
• Store the router in a dry, dust-free location when not in use to prolong life and maintain precision.

Safety guidelines

• Wear eye and hearing protection while routing.
• Use a dust extraction or dust mask when working with dusty materials.
• Secure workpieces firmly with clamps or a router table to prevent movement.
• Feed the router against the rotation of the bit for controlled cutting.
• Keep hands clear of the bit path and use push blocks or featherboards when appropriate.
• Follow manufacturer instructions for depth adjustment and bit changing to avoid accidents.

Frequently asked questions

Q: Can the motor be used with a plunge base? A: Yes. The PR20EVS motor is designed to be moved between compatible bases using the quick-clamp system. You can attach compatible plunge or offset bases to increase versatility.

Q: What collet sizes are supported? A: The unit ships with a 1/4″ collet. The fixed base accepts bits up to 1 5/16″ diameter. Check compatibility before using larger shank sizes or specialty collets.

Q: Is the edge guide useful for router table work? A: The straight edge guide is primarily intended for hand-held edge work and offsets up to 3-5/8″. For router table operations, you’ll typically use table-mounted fences and accessories instead.

Q: How do you change bits? A: Use the two-wrench method or the spindle lock plus one wrench, depending on your preference. Always unplug the router before performing bit changes.

Q: What materials can you route? A: You can route hardwoods, softwoods, plywood, MDF, and many plastics. Choose the correct bit type and speed for each material to reduce splintering and prolong bit life.

Why choose the BOSCH PR20EVS over other palm routers

You’ll notice the difference in control and build quality. The combination of soft-start motor, Constant Response Circuitry, and precise depth control gives you a smoother, more consistent routing experience than many basic compact routers. The rugged fixed aluminum base and finger support pockets provide a stable, comfortable platform for both fine trimming and heavier edge work. If you need a reliable palm router that balances portability with accuracy, this model is a strong candidate.

Tips for getting the best results

• Match your bit speed to the bit diameter and material. Slower speeds for large bits, faster speeds for small bits.
• Take multiple light passes instead of trying to remove too much material at once.
• Use sharp, high-quality bits to reduce tear-out and improve surface finish.
• Support long or narrow workpieces to prevent vibration and chatter.
• When following a template, use a guide bushing sized correctly for the bit and template thickness to maintain clean edges.

Buying and compatibility notes

When you order, verify that the package includes the accessories you expect if you need them (for example, additional collets or a plunge base). If you plan to use larger bits or a router table, confirm compatibility and consider additional accessories such as a plunge base, router table insert plate, or dust extraction adapters.

Ready to add a versatile, precise palm router to your toolkit? The BOSCH PR20EVS Colt gives you professional-grade control in a compact, ergonomic package so you can tackle trimming, edging, and finishing tasks with confidence.
